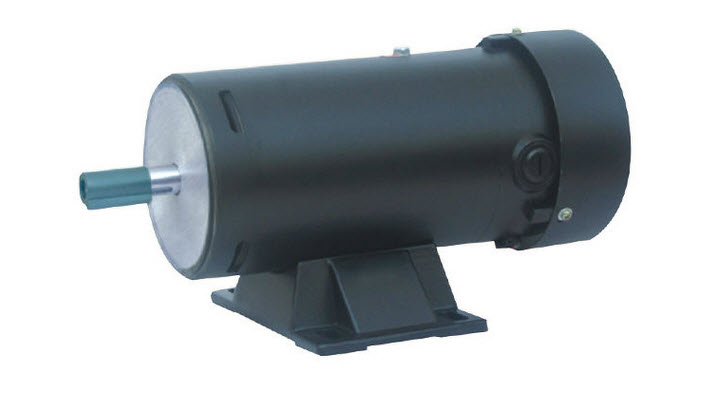

High efficiency 90V dc geared motor









Quick Details

  • Usage: Boat, Car, Electric Bicycle, Fan, Home Appliance, Boat,Car,Electric Bicycle,Fan,Home Appliance
  • Certification: CCC, CE, UL
  • Type: horizontal motor
  • Torque: 1.69Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1700rpm
  • Continuous Current(A): 4.45A
  • Output Power: 300W
  • Voltage(V): 90V
  • Efficiency: IE 2
  • g.w: 8kg geared motor
  • carton size: 34*19*20.5kg geared motor
  • insulation grade: F
  • diameter: 113mm geared motor

Specifications

1.geared motor
2.UL,CE
3.90v,300w,1700rpm.
4.Widely used
5.High efficiency, easy adjustment of speed,low price

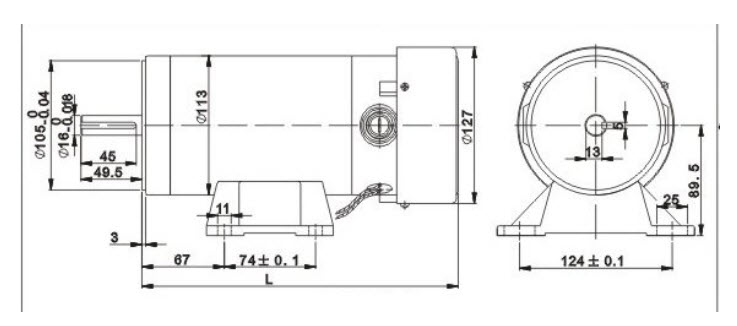

◊ Drawing

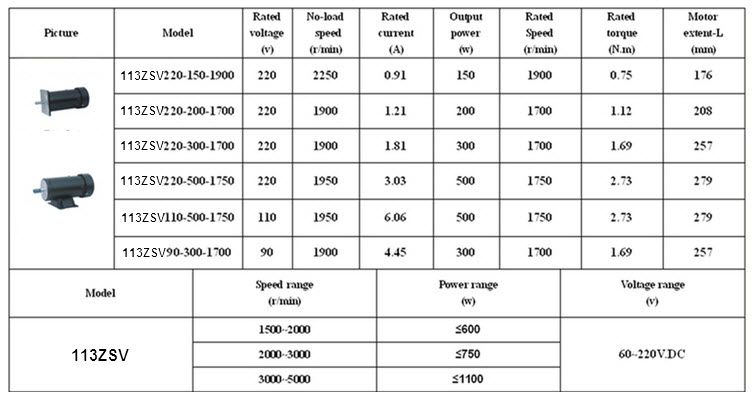

◊ Specification

◊ Model Description

113

ZSV

90

-

300

-

1700

1.

2.

3.



4.



5.


1.Body OD:113-fuselage outside diameter of 113mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:90-90V.DC input

4.Power:300-rated output power of 300HP

5.Speed:1700-Rated speed 1700rpm
